Product Introduction

Standard Size All-in-One LED Touch Screen

Flip-chip COB LED Dispplay, like Big TV

Standard Size All-in-One LED Touch Screen

All-in-One LED Touch Screen Input and Output

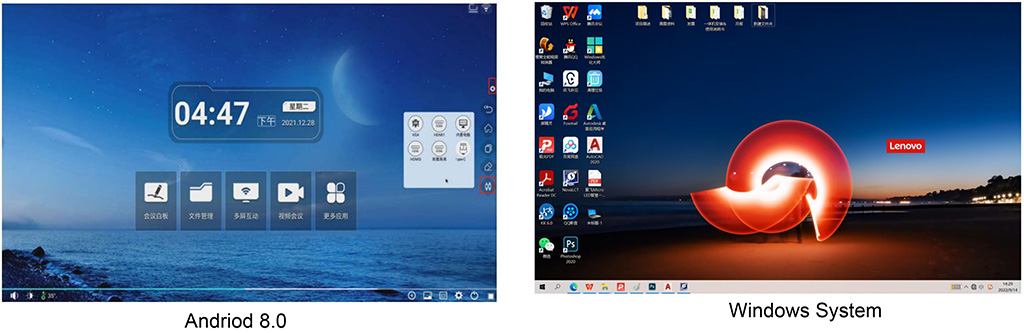

All-in-One LED Bundle --Andriod & Windows Operation Systems

Simple and Fast swtich

All-in-One LED Bundle --Touch Function

•LED Touch Screen- With Infrared Bar sitting around the edges

•White board with 10-point built-in system, support multiple simultameous users.

All-in-One LED Bundle-- Audio System

• 2x Built-in speakers

• Audio output has no latency

• Or connect to your existing speakerswith HDMI cable

All-in-One LED Bundle-- Wireless Presentation in Meetings

• Wireless presentation system for conference room

• Fast ,simple and easy sharing

• No cables, no hassle

• Sharing presentations, videos, content from you Laptop/ Mobile / Pad .

All-in-One LED Bundle-- For Online Video Meeting

Indoor MicroLED Display

Flip-chip COB , 16:9 Aspect Ratio, indoor high-definition / NPP (Narrow Pixel Pitch) display

Robust Against External Impact

• High reliability, pixel failure rate < 20ppm

• Anti-bumping /Anti-static / Anti-oxidation

• Moisture-proof/ dust-proof

Better Image Quality

• Higher contast ratio up to 20000:1

• 3840Hz refresh rate

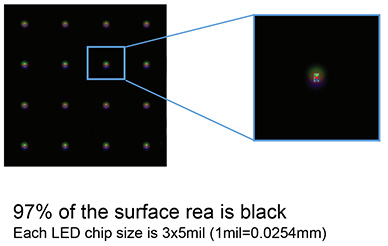

• Better color uniformity with black film surface

• 170 degree viewing angle

Better Heat Dissipation & Less Power Consumption

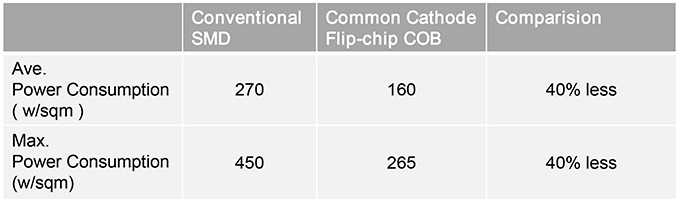

• 40% heat dissipation when compared with SMD LED display

• Cool LED surface working at 24/7

• Longer lifetime

Remark: the data is for 0.9mm LED display. Working at same brightness, same scan rate.

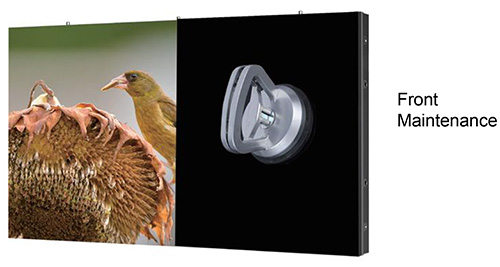

100% Front Installation and Service

• Magnetic modules for easy maintenance

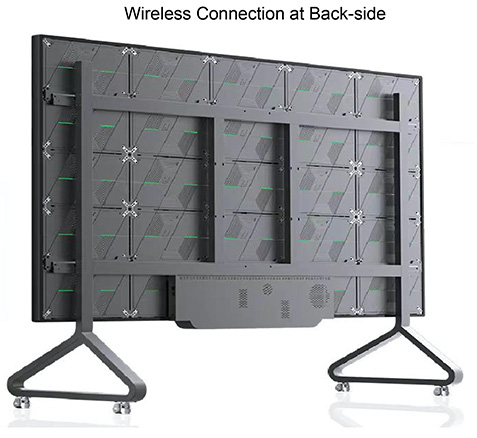

• Wireless connection, cables are embedded inside the cabinets, clean and tidy LED panel back setup

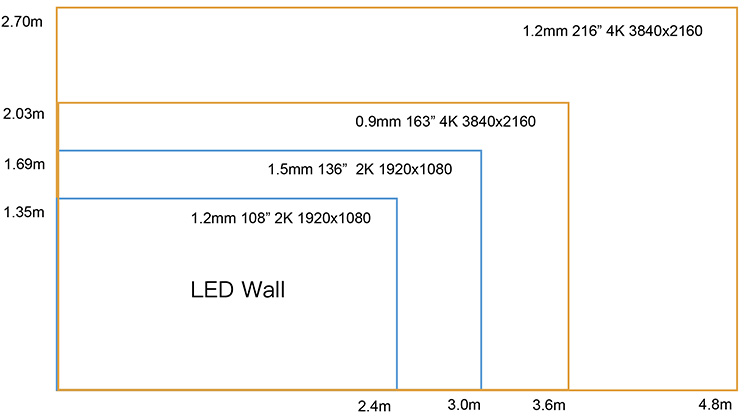

16:9 Aspect Ratio

Designed for 16:9 /4:3 aspect ratio screen, so you can get exact 2K/4K LED Wall,no need to crop or stretch the content.

Specification

	FHD 2K Resolution		UHD 4K Resolution
	BigTV-145	BigTV-163	BigTV-108	BigTV-136
Pixel & Module
Pixel Pitch (mm)	0.84mm	0.93mm	1.25mm	1.56mm
Pixel Config	Flip-Chip COB	Flip-Chip COB	Flip-Chip COB	Flip-Chip COB
Module Dimension (WxH)	300 x 337.5	300 x 337.5	300 x 337.5	300 x 337.5
Module Graphic Definition	480 x540	320x360	240x270	192x216
Surface	Deep Black Matt Film	Deep Black Matt Film	Deep Black Matt Film	Deep Black Matt Film
Circuit	Common-Cathode	Common-Cathode	Common-Anode	Common-Anode
Scratch Resistance	3H	3H	3H	3H
ESD Capacity	8000V	8000V	8000V	8000V
Cabinet

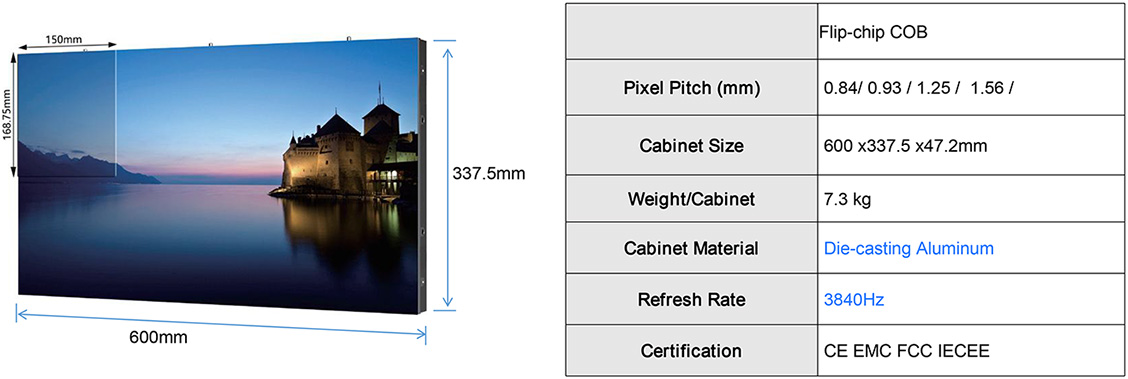

Cabinet Dimension(Wx Hx D)	403.2 x 453.6mm	600 x337.5 x47.2mm	600 x337.5 x47.2mm	600 x337.5 x47.2mm
No. of Modules Per Panel (W × H)	2x1	2x1	2x1	2x1
Cabinet Graphic Definition	480 x540	640x360	480x270	384x216
Cabinet Material	Die-casting Al	Die-casting Al	Die-casting Al	Die-casting Al
All-in-One Touch Screen

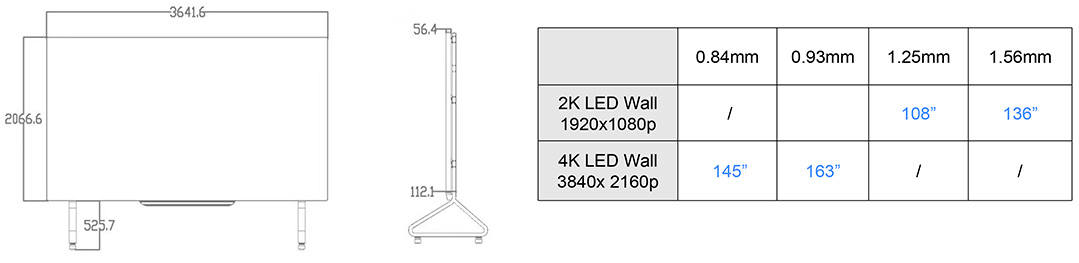

All-in-One Dimensions	145" （3.23m x 1.81m）	163"(3.6m x 2.025m)	108" (2.4m x 1.35m)	136"(3m x1.6875m)
All-in-One Definition	3840 x 2160p	3840 x 2160p	1920 x 1080p	1920 x 1080p
LED Panel Qty(WxH)	8 x 4	6 x 6	4 x 4	5 x 5

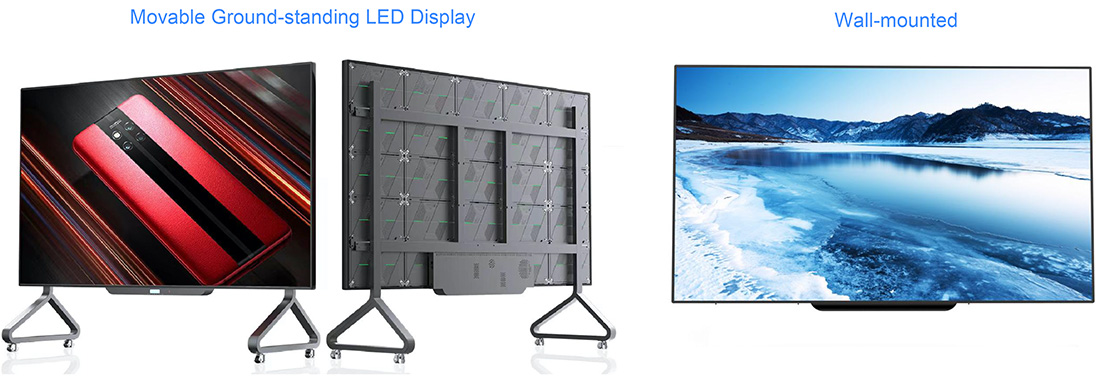

Wall-mounted Subframe /Ground-standing Subframe	Yes	Yes	Yes	Yes
Ground-standing Subframe Height	525.7 mm	525.7 mm	525.7 mm	525.7 mm
Touch Screen Function	Yes	Yes	Yes	Yes
Audio Systems 2 Speakers	Yes	Yes	Yes	Yes

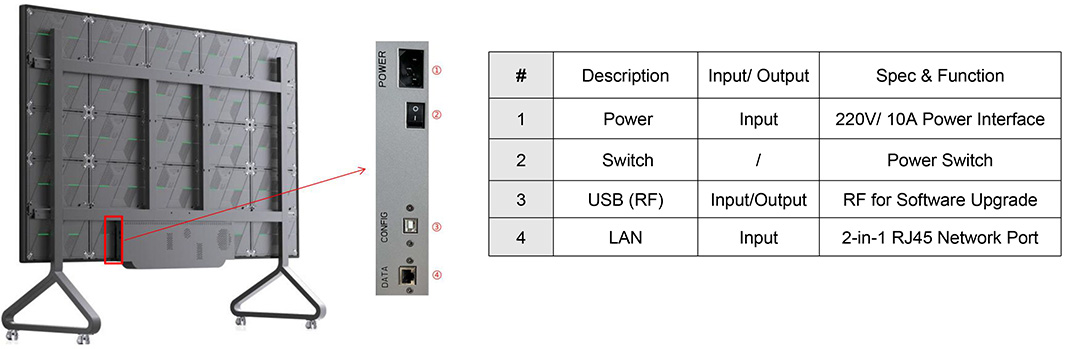

Input Interface	1x HDMI 2.0, 1x USB 2.0 (RF), 2x USB 3.0， 1x Type-C，1xUSB Touch, 1x RJ45，1x Power Supply	1x HDMI 2.0, 1x USB 2.0 (RF), 2x USB 3.0， 1x Type-C，1xUSB Touch, 1x RJ45，1x Power Supply	1x HDMI 2.0, 1x USB 2.0 (RF), 2x USB 3.0， 1x Type-C，1xUSB Touch, 1x RJ45，1x Power Supply	1x HDMI 2.0, 1x USB 2.0 (RF), 2x USB 3.0， 1x Type-C，1xUSB Touch, 1x RJ45，1x Power Supply
Output Interface	1 x HDMI 2.0	1 x HDMI 2.0	1 x HDMI 2.0	1 x HDMI 2.0
Built-in Operation System	Default Andriod System (Windows Optional )	Default Andriod System (Windows Optional )	Default Andriod System (Windows Optional )	Default Andriod System (Windows Optional )
4K Camera	Optional	Optional	Optional	Optional
Sound Pick-up	Optional	Optional	Optional	Optional
Wireless Presentation	Optional	Optional	Optional	Optional
IP Rating	IP65 Front / IP30 Rear	IP65 Front / IP30 Rear	IP65 Front / IP30 Rear	IP65 Front / IP30 Rear
Service	Full Front Service	Full Front Service	Full Front Service	Full Front Service
Optical/ Video
Tcon Vendor	Novastar	Novastar	Novastar	Novastar
Tcon part name	A10s-Pro	A10s-Plus	A8s-N	A5s-Plus
Refresh Rate	7680Hz	3840Hz	3840Hz	3840Hz
Brightness (after Cal.)	1 000nits	1 000nits	600nits	600nits
Processing	22 bit	22 bit	22 bit	22 bit
Colors	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	20 000:1	20 000:1	20 000:1	20 000:1
Horizontal Viewing Angle	170	170	170	170
Vertical Viewing Angle	170	170	170	170
Electrical/ Environmental
Ave. Power Consumption (w/m2)	195	160	145	135
Max. Power Consumption (w/m2)	300	265	225	200
Operating Temp/Humidity	-10/50,10%RH~80%RH	-10/50,10%RH~80%RH	-20/50,10%RH~90%RH	-20/50,10%RH~90%RH
Storage Temp/Humidity	-20/60,10%RH~90%RH	-20/60,10%RH~90%RH	-30/60,10%RH~90%RH	-30/60,10%RH~90%RH
Expected LED Lifetime (Max)	100000h	100000h	100000h	100000h
Operation	24x7 continuous operation	24x7 continuous operation	24x7 continuous operation	24x7 continuous operation
Certification
Regulatory and Safety Certifications	CCC, CE, FCC, ROHS	CCC, CE, FCC, ROHS	CCC, CE, FCC, ROHS	CCC, CE, FCC, ROHS

Product specifications and designs are subject to change without notice.
