Application: Corporate/ Government / Shopping Mall / Events

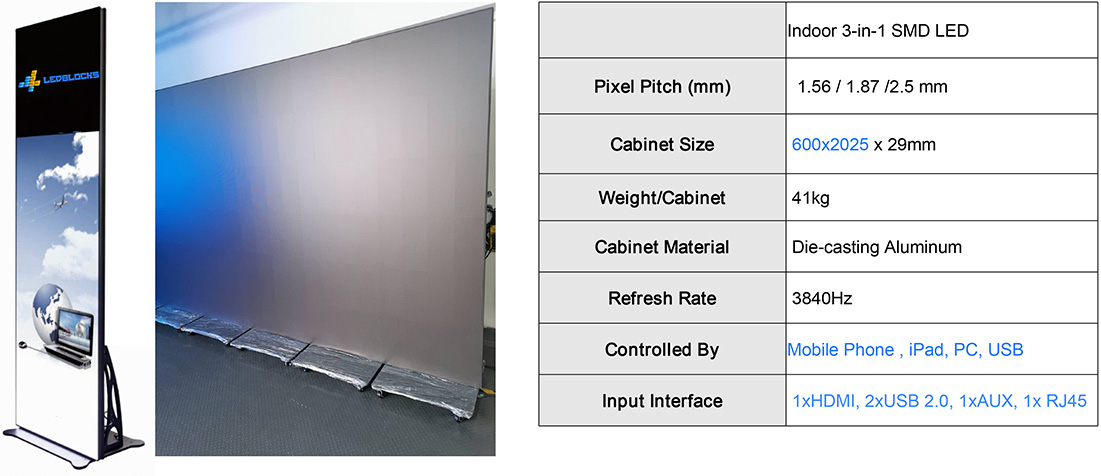

Ground-standing Independent Indoor LED Display Poster
Best Image Quality
• Best Grayscale
• High Color Fidelity- True Color
• Easy Front Maintenance
• 3840Hz Refresh Rate
Plug-and-Play Easy Operation andPerfect Flatness

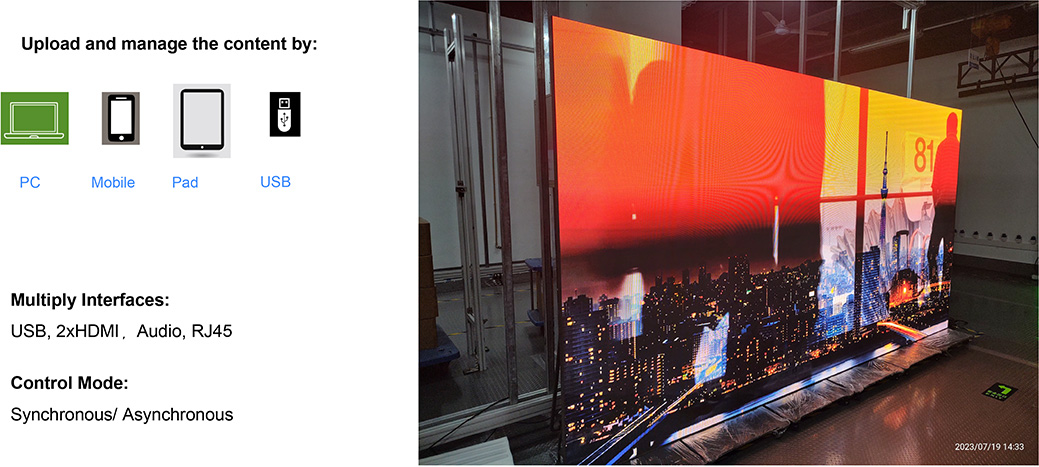

Multiple Simple and Easy Content Management
Control the LED Poster with Your App
| LBC P1.56 | LBC P1.87 | LBC P2.5 | |
| Pixel & Module | |||
| Pixel Pitch (mm) | 1.56mm | 1.87mm | 2.5mm |
| Pixel Config | 3-in-1 SMD 1212 | 3-in-1 SMD 1515 | 3-in-1 SMD 1515 |
| Module Dimension (WxH) | 300 x 168.75 | 300 x 168.75 | 300 x 168.75 |
| Module Graphic Definition | 192x108 | 160x90 | 120x67 |
| Cabinet | |||
| Cabinet Dimension(Wx Hx D) | 600 x337.5 x29mm | 600 x337.5 x29mm | 600 x337.5 x29mm |
No. of Modules Per Panel (W × H) | 2x2 | 2x2 | 2x2 |
| Cabinet Graphic Definition | 384x216 | 320x180 | 240x135 |
| Cabinet Material | Die-casting Al | Die-casting Al | Die-casting Al |
| Poster | |||
| Poster Dimension(WxH) | 600 x2025 x35mm | 600 x2025 x35mm | 600 x2025 x35mm |
| Poster Graphic Definition | 384x 1296 | 320x 1080 | 240x 810 |
| Weight per Poster | 41kg | 41kg | 41kg |
| Input Interface | 1xHDMI, 2xUSB 2.0, 1xAUX | 1xHDMI, 2xUSB 2.0, 1xAUX | 1xHDMI, 2xUSB 2.0, 1xAUX |
| Controlled By | Mobile Phone , iPad, PC | Mobile Phone , iPad, PC | Mobile Phone , iPad, PC |
| IP Rating | IP30 | IP30 | IP30 |
| Service | Full Front Service | Full Front Service | Full Front Service |
| Optical/ Video | |||
| Tcon Vendor | Novastar | Novastar | Novastar |
| Tcon part name | TB50/T6 | TB50/T6 | TB50/T6 |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
| Brightness (after Cal.) | 600-800nits | 600-800nits | 800-1000nits |
| Processing | 16bit | 16bit | 16bit |
| Colors | 2^36 | 2^36 | 2^36 |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
| Horizontal Viewing Angle | 160 | 160 | 160 |
| Vertical Viewing Angle | 160 | 160 | 160 |
| Electrical/ Environmental | |||
| Ave. Power Consumption (w/m2) | 200 | 190 | 210 |
| Max. Power Consumption (w/m2) | 690 | 670 | 710 |
| Operating Temp/Humidity | 0/45,10%RH~55%RH | 0/45,10%RH~55%RH | 0/45,10%RH~55%RH |
| Storage Temp/Humidity | -10/55,10%RH~55%RH | -10/55,10%RH~55%RH | -10/55,10%RH~55%RH |
| Expected LED Lifetime (Max) | 100000h | 100000h | 100000h |
| Certification | |||
| Regulatory and Safety Certifications | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS |
Product specifications and designs are subject to change without notice.
