Application: Corporate/ Retail/ Airport / Education /Command and Control Room
Indoor MicroLED Display
Flip-chip COB , 16:9 Aspect Ratio, indoor high-definition / NPP (Narrow Pixel Pitch) display

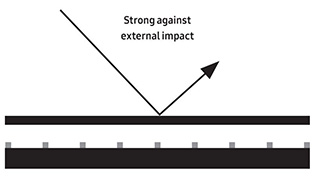

Robust Against External Impact
• High reliability, pixel failure rate < 20ppm
• Anti-collosion/ bumping
• Easy cleaning
• Waterproof, dustproof, moistureproof
• Anti-static
Better Image Quality
• Higher contast ratio up to 20000:1
• 3840Hz refresh rate
• Better color uniformity with black film surface
• 170 degree viewing angle
Better Heat Dissipation & Less Power Consumption
• 40% heat dissipation when compared with SMD LED display
• Cool LED surface working at 24/7
• Longer lifetime
Remark: the data is for 0.9mm LED display. Working at same brightness, same scan rate.
100% Front Installation and Service
• Magnetic modules for easy maintenance
• Wireless connection, cables are embedded inside the cabinets, clean and tidy LED panel back setup
16:9 Aspect Ratio
Designed for 16:9 /4:3 aspect ratio screen, so you can get exact 2K/4K LED Wall,no need to crop or stretch the content.
| LBC P0.78 | LBC P0.93 | LBC P1.25 | LBC P1.56 | |
| Pixel & Module | ||||
| Pixel Pitch (mm) | 0.78mm | 0.93mm | 1.25mm | 1.56mm |
| Pixel Config | Flip-Chip COB | Flip-Chip COB | Flip-Chip COB | Flip-Chip COB |
| Module Dimension (WxH) | 300 x 337.5 | 300 x 337.5 | 300 x 337.5 | 300 x 337.5 |
| Module Graphic Definition | 384x432 | 320x360 | 240x270 | 192x216 |
Surface | Deep Black Matt Film | Deep Black Matt Film | Deep Black Matt Film | Deep Black Matt Film |
| Circuit | Common-Cathode | Common-Cathode | Common-Anode | Common-Anode |
| Scratch Resistance | 3H | 3H | 3H | 3H |
| ESD Capacity | 8000V | 8000V | 8000V | 8000V |
| Cabinet | ||||
| Cabinet Dimension(Wx Hx D) | 600 x337.5 x47.2mm | 600 x337.5 x47.2mm | 600 x337.5 x47.2mm | 600 x337.5 x47.2mm |
No. of Modules Per Panel (W × H) | 2x1 | 2x1 | 2x1 | 2x1 |
| Cabinet Graphic Definition | 768x432 | 640x360 | 480x270 | 384x216 |
| Cabinet Material | Die-casting Al | Die-casting Al | Die-casting Al | Die-casting Al |
| Single Cabinet Weight | 7.3kg | 7.3kg | 7.3kg | 7.3kg |
| Weight per ㎡ | 36.5kg | 36.5kg | 36.5kg | 36.5kg |
Curve Support (-:concave +: convex) | Concave Support | Concave Support | Concave Support | Concave Support |
| IP Rating | IP65 Front / IP30 Rear | IP65 Front / IP30 Rear | IP65 Front / IP30 Rear | IP65 Front / IP30 Rear |
| Service | Full Front Service | Full Front Service | Full Front Service | Full Front Service |
| Optical/ Video | ||||
| Tcon Vendor | Novastar | Novastar | Novastar | Novastar |
| Tcon part name | Nova A10-Plus x2 | Nova A10-Plus | Nova A8s-N | A5s-Plus |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness (after Cal.) | 600nits | 600nits | 600nits | 600nits |
| Processing | 16+6bit | 16+6bit | 16+6bit | 16+6bit |
| Colors | 2^36 | 2^36 | 2^36 | 2^36 |
| Contrast Ratio | 20 000:1 | 20 000:1 | 20 000:1 | 20 000:1 |
| Horizontal Viewing Angle | 170 | 170 | 170 | 170 |
| Vertical Viewing Angle | 170 | 170 | 170 | 170 |
| Electrical/ Environmental | ||||
| Ave. Power Consumption (w/m2) | 190 | 160 | 145 | 135 |
| Max. Power Consumption (w/m2) | 300 | 265 | 225 | 200 |
| Operating Temp/Humidity | -20/50,10%RH~90%RH | -20/50,10%RH~90%RH | -20/50,10%RH~90%RH | -20/50,10%RH~90%RH |
| Storage Temp/Humidity | -20/60,10%RH~90%RH | -20/60,10%RH~90%RH | -20/60,10%RH~90%RH | -20/60,10%RH~90%RH |
| Expected LED Lifetime (Max) | 100000h | 100000h | 100000h | 100000h |
| Operation | 24x7 continuous operation | 24x7 continuous operation | 24x7 continuous operation | 24x7 continuous operation |
| Certification | ||||
| Regulatory and Safety Certifications | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS |
Product specifications and designs are subject to change without notice.
