• Energy-saving and COLD Screen
• 3840Hz Refresh Rate
• 1000nits Brightness and HDR
• DCI-P3/ Rec2020 Wide Color Gamut
• Ultimate Grayscale and High Contrast
Flip-chip Common-cathode COB
• 50% Power comsumption less than SMD display
• Good heat dissipation
• Stable and long lifetime
• NNP (Narrow Pixel Pitch ) Indoor LED display
Best Image Quality
• Deep black film delivers 20 000:1 contrast
• Higher Brightness up to 1000nits

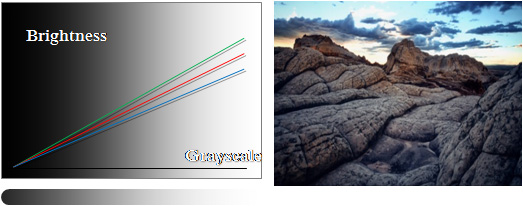

• Superior grayscale so that tiny details can be seen

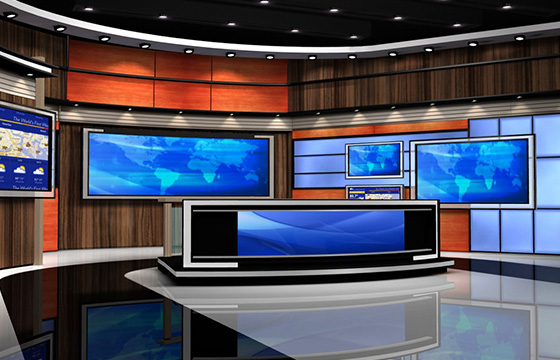

• 3840Hz refresh rate and camera friendly scan rate is ideal for broadcast and virtual production.

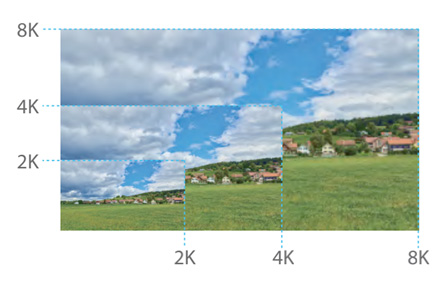

Exact 2K/4K LED Wall
• Ultra-thin and Wireless design, Clean and tidy back design
• 4:3/16:9 aspect ratio to reach exact 2K /4K /8K resolution LED wall

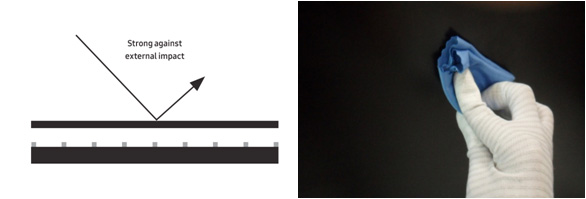

More Robust
• Flip-chip COB ensures the highest level of durability with resilience against collision, static electricity, dust and humidity.
| LBC Pro P0.84 | LBC Pro P1.26 | |
| Pixel & Module | ||
| Pixel Pitch (mm) | 0.84mm | 1.26mm |
| Pixel Config | Flip-Chip COB | Flip-Chip COB |
| Module Dimension (WxH) | 403.2 x 453.6 | 403.2 x 453.6 |
| Module Graphic Definition | 480x540 | 320x360 |
Min. Display Unit Dimension (WxH) | 201.6×151.2 | 201.6×151.2 |
Surface | Deep Black Film | Deep Black Film |
| Circuit | Common-Cathode | Common-Cathode |
| Scan Rate | 1/45 | 1/30 |
| Scratch Resistance | 3H | 3H |
| ESD Capacity | 8000V | 8000V |
| Cabinet | ||
| Cabinet Dimension(Wx Hx D) | 403.2x453.6 | 403.2x453.6 |
No. of Modules Per Panel (W × H) | 1x1 | 1x1 |
| Cabinet Graphic Definition | 480x540 | 320x360 |
| Cabinet Material | Die-casting Al | Die-casting Al |
| Single Cabinet Weight | 6.2kg | 6.2kg |
| Weight per ㎡ | 34kg | 34kg |
Curve Support (-:concave +: convex) | Concave Support | Concave Support |
| IP Rating | IP30 | IP30 |
| Service | Full Front Service | Full Front Service |
| Optical/ Video | ||
| Tcon Vendor | Novastar | Novastar |
| Tcon part name | Nova A10S prox2 | Nova A10S pro |
| Refresh Rate | 3840Hz | 3840Hz |
| Brightness (after Cal.) | 600nit，Peak at 1000nit | 600nit，Peak at 1000nit |
| Processing | 16+6bit | 16+6bit |
| Colors | 2^45 | 2^45 |
| Contrast Ratio | 20 000:1 | 20 000:1 |
| Horizontal Viewing Angle | 170 | 170 |
| Vertical Viewing Angle | 170 | 170 |
| Electrical/ Environmental | ||
| Ave. Power Consumption (w/m2) | 195 | 146 |
| Max. Power Consumption (w/m2) | 300 | 225 |
| Operating Temp/Humidity | -20/50,10%RH~90%RH | -20/50,10%RH~90%RH |
| Storage Temp/Humidity | -20/60,10%RH~90%RH | -20/60,10%RH~90%RH |
| Expected LED Lifetime (Max) | 100000h | 100000h |
| Operation | 24x7 continuous operation | 24x7 continuous operation |
| Certification | ||
| Regulatory and Safety Certifications | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS |
Product specifications and designs are subject to change without notice.
