Lbt Series-Ledblocks Technology

Product Introduction

Indoor and Outdoor Transparent LED Display

Same Mechanical Desgin for Indoor and Outdoor

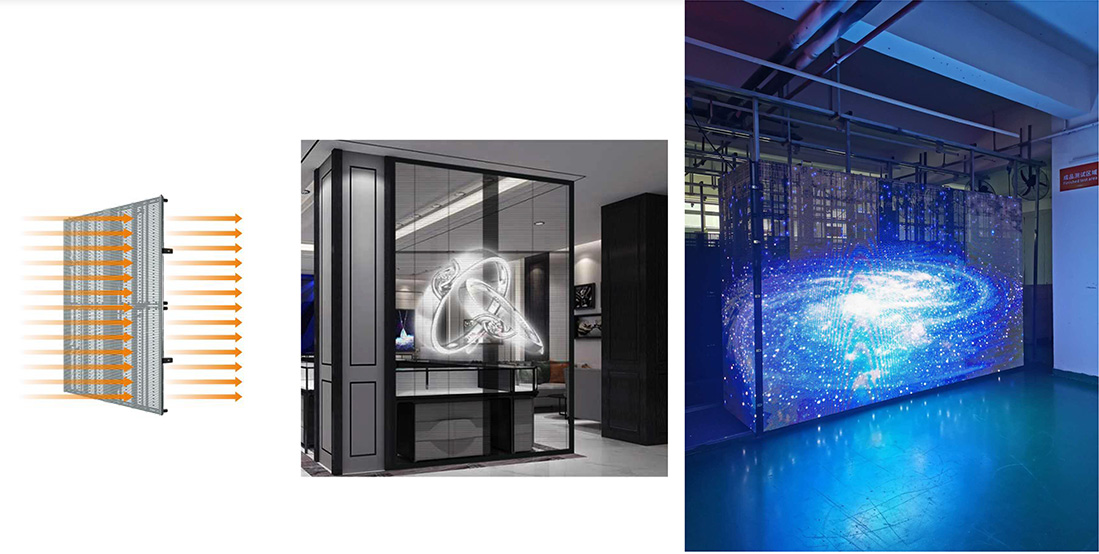

Up to 60% High Transparency

Without block the light

Good heat dissipation

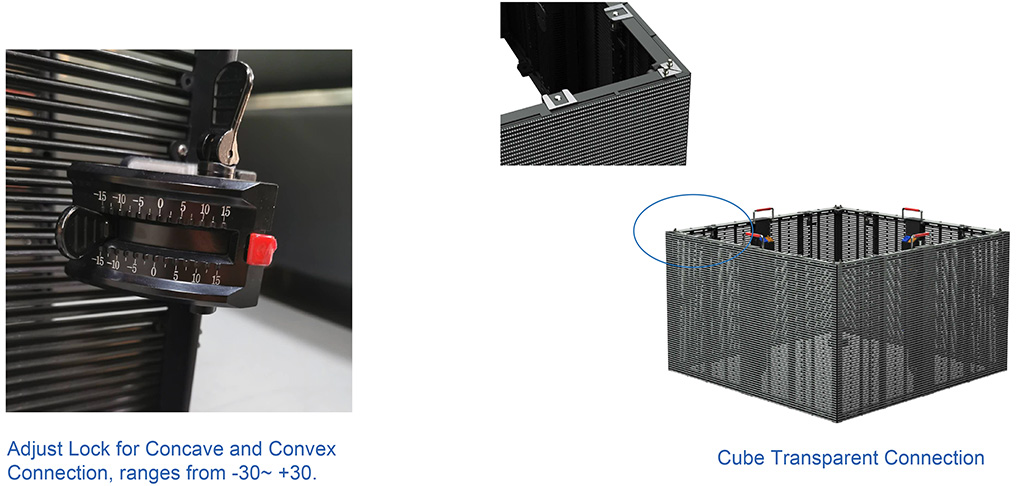

Concave/ Convex /90degree Corner Connection

Outdoor LED Display with Good Image Quality

• High brightness up to 4 500nits

• Anti-UV

• Reliable working at -30 ~60 degrees

• High Contrast Ratio

• IP65

Easy Maintenance

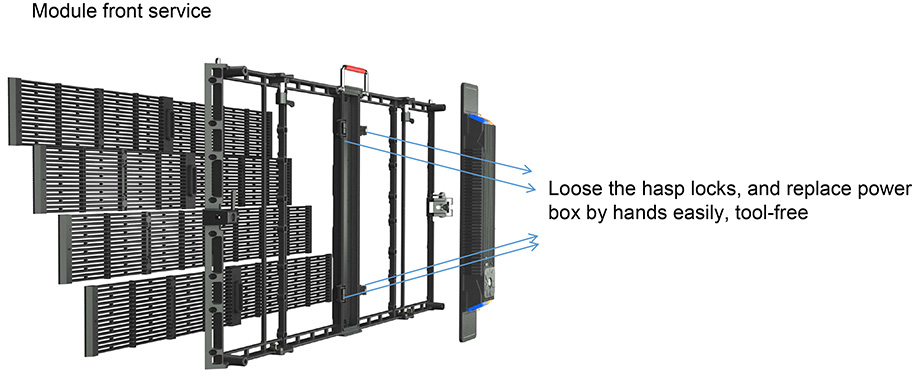

Easy to replace the modules and power box

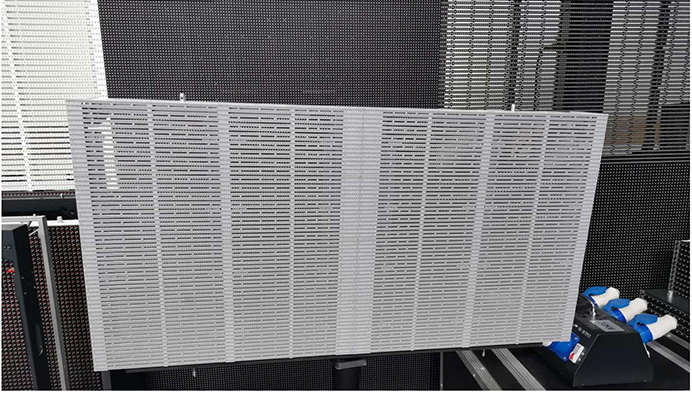

Optional White Color LED Display

Good-looking, more bright

Specification

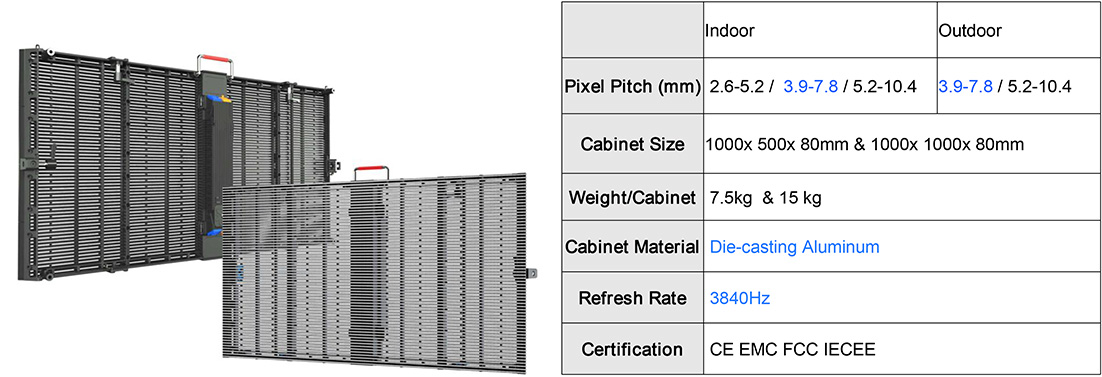

	LBT-I P2-5	LBT-I P3-7	LBT-I P5-10	LBT-O P3-7	LBT-O P5-10
Pixel & Module
Pixel Pitch (mm)	2.6mm-5.2mm	3.9mm-7.8mm	5.2mm-10.4mm	3.9mm-7.8mm	5.2mm-10.4mm
Pixel Config	3-in-1 SMD 1415	3-in-1 SMD 1921	3-in-1 SMD 1921	3-in-1 SMD 1921	3-in-1 SMD 1921
Module Dimension (WxH)	500mmx 125mm	500mmx 125mm	500mmx 125mm	500mmx 125mm	500mmx 125mm
Module Graphic Definition	192 x24	128 x 16	96 x 12	128 x 16	96 x 12
Scan Rate	1/12	1/8	1/4	1/8	1/4
Cabinet
Cabinet Dimension(Wx Hx D)	1000 x 500 x 80mm	1000 x 500 x 80mm	1000 x 500 x 80mm	1000 x 500 x 80mm	1000 x 500 x 80mm
No. of Modules Per Panel (W × H)	2x4	2x4	2x4	2x4	2x4
Cabinet Graphic Definition	384 x96	256 x64	192x 48	256 x64	192x 48
Cabinet Material	Die-casting Al	Die-casting Al	Die-casting Al	Die-casting Al	Die-casting Al
Single Cabinet Weight	4.8 ±0.3 kg/panel	5.8 ±0.3 kg/panel	5.8 ±0.3 kg/panel	7.5 ±0.3 kg/panel	7.5 ±0.3 kg/panel
Weight per ㎡	9 kg/m²	11 kg/m²	11 kg/m²	15 kg/m²	15 kg/m²
Curve Support (-:concave +: convex)	-5 ,0 +5, +10,+15	-15,-10, -5 ,0 +5, +10,+15	-15,-10, -5 ,0 +5, +10,+15	-15,-10, -5 ,0 +5, +10,+15	-15,-10, -5 ,0 +5, +10,+15
Transparency Rate	55%	75%	65%	53%	58%
Max Hanging	20panels	20panels	20panels	20panels	20panels
Max Stacking	20panels	20panels	20panels	20panels	20panels
IP Rating	IP30	IP30	IP30	IP65	IP65
Service	Front &Rear Service	Front &Rear Service	Front &Rear Service	Front &Rear Service	Front &Rear Service
Optical/ Video
Tcon Vendor	Novastar	Novastar	Novastar	Novastar	Novastar
Tcon part name	A5s-Plus	A5s-Plus	A5s-Plus	A5s-Plus	A5s-Plus
Refresh Rate	5120Hz	5120Hz	3840Hz	3840Hz	3840Hz
Brightness (after Cal.)	≥4 500nits	≥4 500nits	≥4 500nits	≥4 500nits	≥4 500nits
Processing	14bit	14bit	14bit	14bit	14bit
Colors	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	4000:1	4000:1	4000:1	4000:1	4000:1
Horizontal Viewing Angle	160	160	160	140	140
Vertical Viewing Angle	140	140	140	120	120
Electrical/ Environmental
Ave. Power Consumption (w/m2)	260	260	260	260	260
Max. Power Consumption (w/m2)	800	800	800	800	800
Max Daisy Chain	Signal： 15(575,000pixels)~17 panels (650,000pixels) Power： 8 panels (220v); 4 panels (110v)	Signal：35(575,000pixels)~39panels (650,000pixels) Power： 8 panels (220v); 4 panels (110v);	Signal：62(575,000pixels)~70panels (650,000pixels) Power： 8 panels (220v); 4 panels (110v);	Signal：35(575,000pixels)~39panels (650,000pixels) Power： 8 panels (220v); 4 panels (110v);	Signal：62(575,000pixels)~70panels (650,000pixels) Power： 8 panels (220v); 4 panels (110v);
Operating Temp/Humidity	-10/50,10%RH~80%RH	-10/50,10%RH~80%RH	-10/50,10%RH~80%RH	-20/50,10%RH~90%RH	-20/50,10%RH~90%RH
Storage Temp/Humidity	-20/60,10%RH~90%RH	-20/60,10%RH~90%RH	-20/60,10%RH~90%RH	-30/60,10%RH~95%RH	-30/60,10%RH~95%RH
Expected LED Lifetime (Max)	100000h	100000h	100000h	100000h	100000h
Certification
Regulatory and Safety Certifications	CCC, CE, FCC, ROHS	CCC, CE, FCC, ROHS	CCC, CE, FCC, ROHS	CCC, CE, FCC, ROHS	CCC, CE, FCC, ROHS

Product specifications and designs are subject to change without notice.
