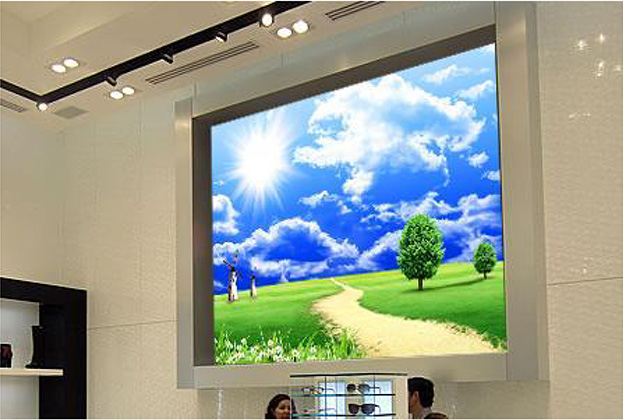

Application: Corporate/ Retail/ Airport / Education /Command and Control Room -- Cost-effective Solution

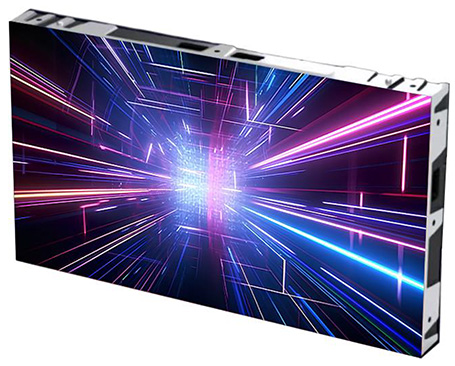

Indoor Fixed LED Display
Remarkably thin, 16:9 Aspect Ratio, indoor high-definition / NPP (Narrow Pixel Pitch) display
3840Hz Refresh Rate
Best Grayscale / High Color Fidelity- True Color

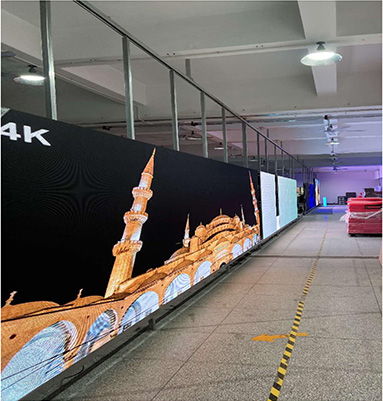

Perfect Flatness and Seamless Splicing
High precision die-casting Al frame and also module frame

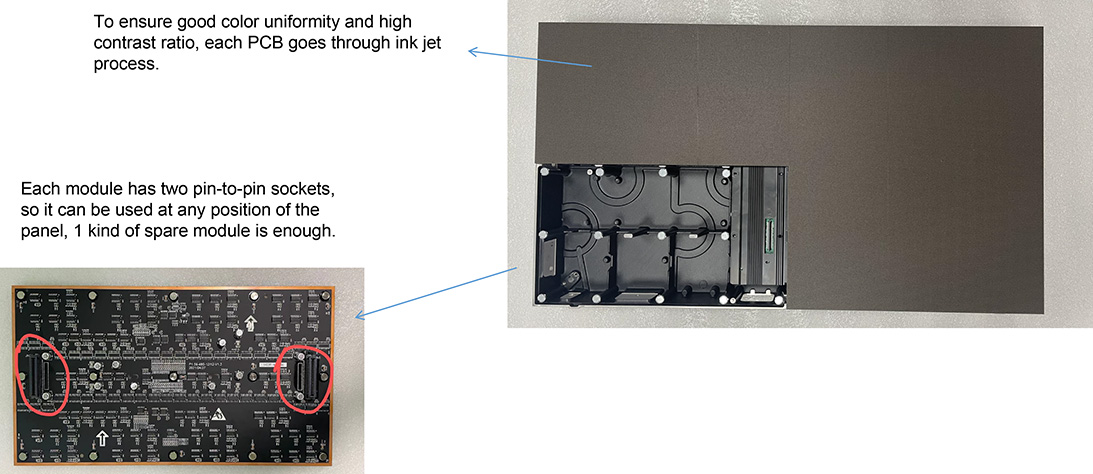

Details of the Product
Better Color Uniformity after Brightness Calibration
• Better color uniformity after calibration
• Automatically read back the calibration data from the receiving cards if changing modules
• 4 layers PCB, more safety and durable
| LBI P0.93 | LBI P1.25 | LBI P1.56 | LBI P1.87 | |
| Pixel & Module | ||||
| Pixel Pitch (mm) | 0.93mm | 1.25mm | 1.56mm | 1.87mm |
| Pixel Config | 4-in-1 SMD | 3-in-1 SMD 1010 | 3-in-1 SMD 1212 | 3-in-1 SMD 1515 |
| Module Dimension (WxH) | 300 x 168.75 | 300 x 168.75 | 300 x 168.75 | 300 x 168.75 |
| Module Graphic Definition | 320x180 | 240x135 | 192x108 | 160x90 |
| Cabinet | ||||

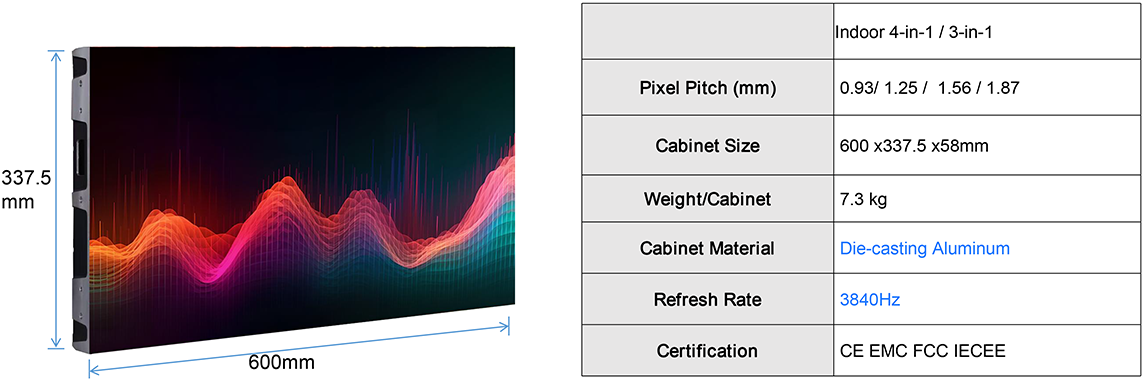

| Cabinet Dimension(Wx Hx D) | 600 x337.5 x58mm | 600 x337.5 x58mm | 600 x337.5 x58mm | 600 x337.5 x58mm |
No. of Modules Per Panel (W × H) | 2x2 | 2x2 | 2x2 | 2x2 |
| Cabinet Graphic Definition | 640x360 | 480x270 | 384x216 | 320x180 |
| Cabinet Material | Die-casting Al | Die-casting Al | Die-casting Al | Die-casting Al |
| Single Cabinet Weight | 7.3kg | 7.3kg | 7.3kg | 7.3kg |
| Weight per ㎡ | 36.5kg | 36.5kg | 36.5kg | 36.5kg |
| IP Rating | IP30 | IP30 | IP30 | IP30 |
| Service | Full Front Service | Full Front Service | Full Front Service | Full Front Service |
| Optical/ Video | ||||
| Tcon Vendor | Novastar | Novastar | Novastar | Novastar |
| Tcon part name | Nova A10-Plus x2 | Nova A8s-N | A5s-Plus | A5s-Plus |
| Refresh Rate | 2880～3840Hz | 2880～3840Hz | 2880～3840Hz | 2880～3840Hz |
| Brightness (after Cal.) | 400nits | 400nits | 400nits | 400nits |
| Processing | 14bit | 14bit | 14bit | 14bit |
| Colors | 2^36 | 2^36 | 2^36 | 2^36 |
| Contrast Ratio | 3000:1 | 3000:1 | 3000:1 | 3000:1 |
| Horizontal Viewing Angle | 110 | 110 | 110 | 110 |
| Vertical Viewing Angle | 110 | 110 | 110 | 110 |
| Electrical/ Environmental | ||||
| Ave. Power Consumption (w/m2) | 135 | 135 | 135 | 135 |
| Max. Power Consumption (w/m2) | 450 | 450 | 450 | 450 |
| Operating Temp/Humidity | 0/45,10%RH~55%RH | 0/45,10%RH~55%RH | 0/45,10%RH~55%RH | 0/45,10%RH~55%RH |
| Storage Temp/Humidity | -10/55,10%RH~55%RH | -10/55,10%RH~55%RH | -10/55,10%RH~55%RH | -10/55,10%RH~55%RH |
| Expected LED Lifetime (Max) | 100000h | 100000h | 100000h | 100000h |
| Certification | ||||
| Regulatory and Safety Certifications | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS | CCC, CE, FCC, ROHS |
Product specifications and designs are subject to change without notice.
