Application：Corporate/ University/ Shopping Mall / Government/ Education / Lecture Theatre
Indoor LCD Interactive Whiteboard
Digital Signage

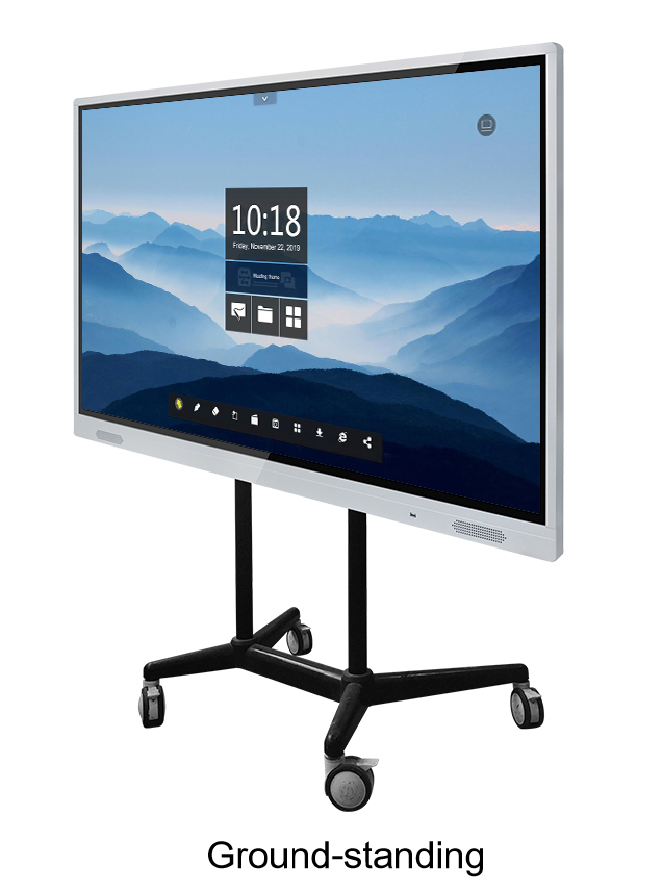

Wall-mounted and Ground-standing Subframe
Intelligent Whiteboard
Advantages

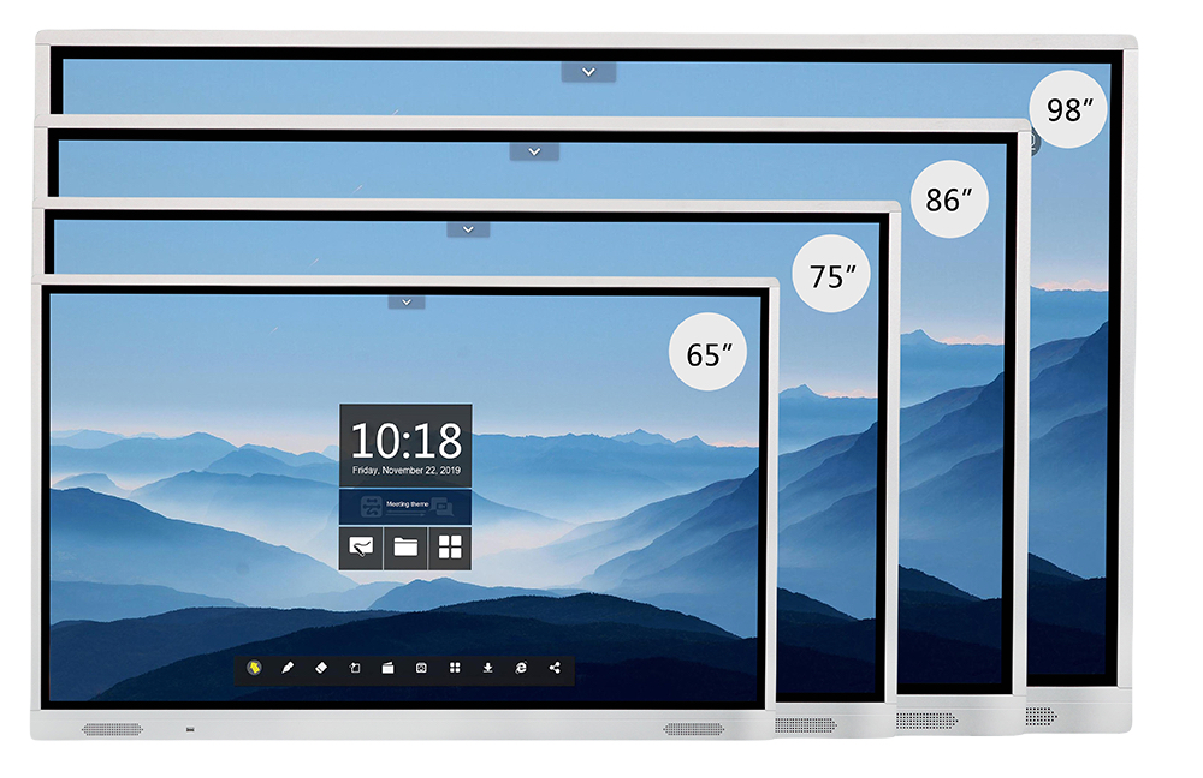

Various Sizes Meet Different Application

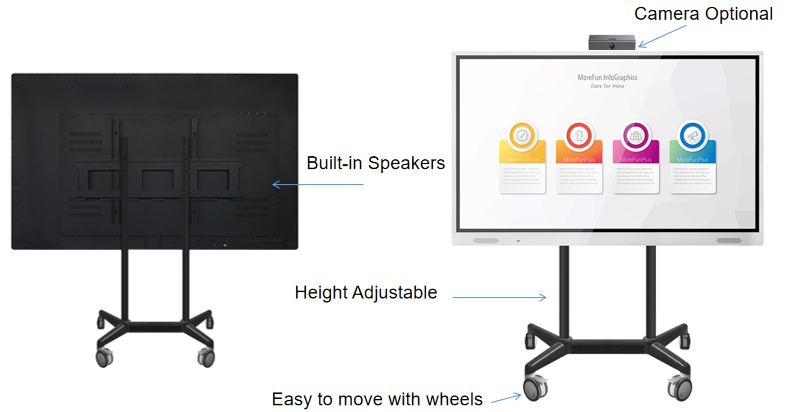

Audio
Speakers：Dual downward facing speakers
Power: 2 x 20 Watts
Connectivity
Input：4x HDMI2.0, 4x USB Touch, 1x VGA / PC Audio (3.5mm) , 1x DP, 2x USB 3.0, 2x OPS Slots,
1x RS232 Serial .
Output: 1x HDMI 2.0, 1xSPDIF Digital Audio, 1x Headphone, 1x RS232 Serial, 2x USB .
Shipping Content
Including: 1x LCD Interactive Whiteboard, 1x Camera, 1x Digital Pen, 2x Stylus , 1x Wall Mount Frame,
1x Remote Control, 1x 3m Power Cable, 1x 3m HDMI Cable + Fastener,
1x 3m USB Cable + Fastener , 1x 3m VGA Cable + Fastener, 1x 3.5mm Audio Cable
1x VGA / PC Audio Adapter, 1xDisplay Port Adapter, 1x User Manual
| 55" HD | 65” HD | 75” HD | 75” 4K UHD | 86” 4K UHD | |
| Optical/ Video | |||||
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 400 cd/㎡ | 450 cd/㎡ | 350 cd/㎡ |
| Contrast Ratio | 1400:1 | 1400:1 | 1200:1 | 1200:1 | 1600:1 |
| Colour Dept | 16.7m (8-bit) | 16.7m (8-bit) | 16.7m (8-bit) | 1.07B (10-bit) | 1.06B (10-bit) |
| Resolution | 2K 1920x1080 @60Hz | 2K 1920x1080@60Hz | 2K 1920x1080 @60Hz | 4K 3840x 2160 @60Hz | 4K 3840x 2160 @ 60Hz |
| Dispaly Area Size | 1210mm x 680mm | 1428mm x 803mm | 1650mm x 928mm | 1650mm x 928mm | 1867mm x 1053mm |
| Interactive | |||||
| Output rate | 111Hz | 111Hz | 90Hz | 90Hz | 83Hz |
| Power Consumption | |||||
| Average | 112w | 152w | 310w | 312w | 419.7w |
| Standby | 0.45w | 0.45w | 0.45w | 0.45w | 0.45w |
| Mechanical Spec | |||||
| Overall Dimensions | 1291.7 x762.5 x 89.3mm | 1510.5x 886.5x 122mm | 1736.8x 1015.3 x 111mm | 1736.8x 1015.3 x 111mm | 1955.4x1141.4x 98.8mm |
| Weight | 40.5 Kg | 55.3 Kg | 56.4 Kg | 56.4 Kg | 95.1 Kg |
| Power Requirement | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V |
| VESA Mount Point | 4 x M8 | 4 x M8 | 4 x M8 | 4 x M8 | 4 x M8 |
| Wall-mounted Frame | VESA 400x 400mm | VESA 400x 400mm | VESA 600x 400mm | VESA 600x 400mm | VESA 600x 400mm |
◇ Product specifications and designs are subject to change without notice.
